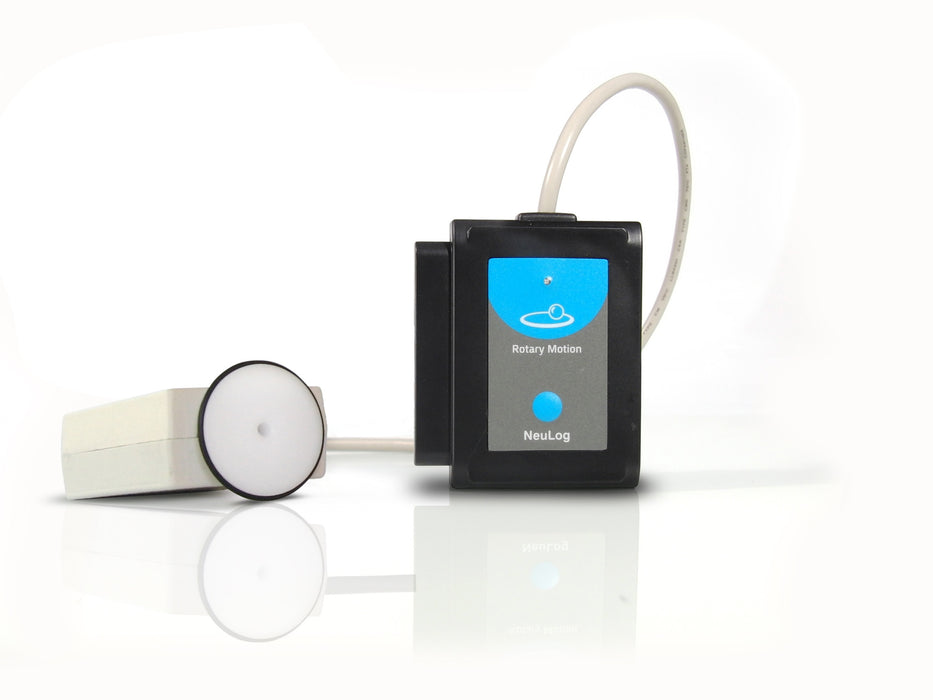

This sensor measures angles, rotation speeds or rotation acceleration. It has a pulley connected to its shaft and the pulley rotation is measured.
This sensor has three modes of operation: rev/s, rad/s2, rad/s.
*Requires connection hardware, sold separately.
Experiment Duration: 1 second to 31 days.
Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
0°-360°, 10 bit, 0.08°, 10
+/- 345 Rad/s, 10 bit, 0.6 Rad/s. 10
+/- 32.222 Rad/s2, 10 bit, 11 Rad/s2, 10
Video:
This sensor has three modes of operation: rev/s, rad/s2, rad/s.
*Requires connection hardware, sold separately.
Experiment Duration: 1 second to 31 days.
Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
0°-360°, 10 bit, 0.08°, 10
+/- 345 Rad/s, 10 bit, 0.6 Rad/s. 10
+/- 32.222 Rad/s2, 10 bit, 11 Rad/s2, 10
Video:
