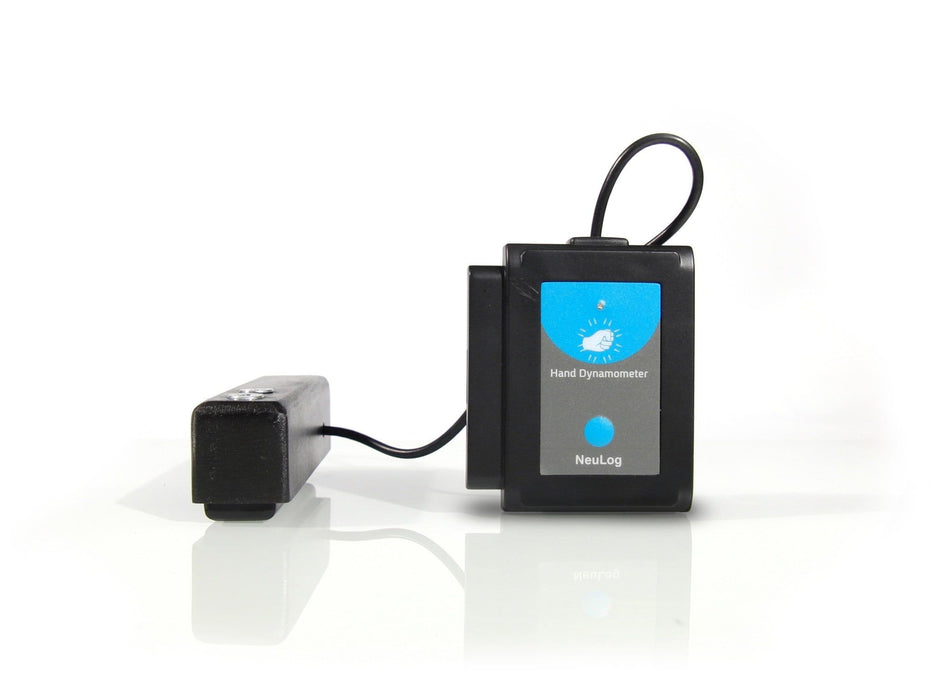

NeuLog Hand Dynometer Logger Sensor
SKU NUL237
This sensor comes with a hand held unit with a built in strain gauge. The sensor measures the pressing force on the hand held unit.
*Requires connection hardware, sold separately.
Experiment Duration: 1 second to 31 days.
Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
0 to 500 N, 13 bit, 0.1 N, 100
0 to 112 lb, 13 bit, 0.02 lb, 100
0 to 50 kg, 13 bit, 0.01 kg, 100
Video:
*Requires connection hardware, sold separately.
Experiment Duration: 1 second to 31 days.
Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
0 to 500 N, 13 bit, 0.1 N, 100
0 to 112 lb, 13 bit, 0.02 lb, 100
0 to 50 kg, 13 bit, 0.01 kg, 100
Video:
| Instructions | No instructions available online. Please contact us for further assistance. |
| High Resolution Image | Please register as a teacher or distributor to view and download high resolution images. |
