Rotating Magnet - For Electromagnetic Induction - For Exploration of Faraday's Law, Magnetism & Lenz's Law - Eisco Labs

• The rotating magnet provides the necessary tools to discover concepts involving Faraday's Law, magnetism, in addition to Lenz's Law

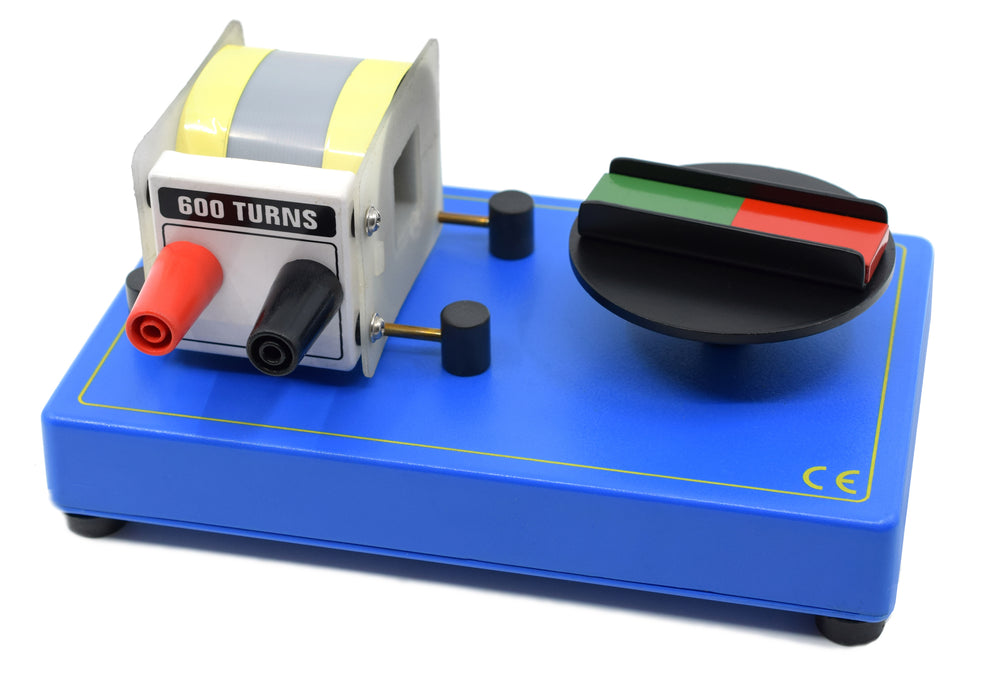

• Includes a 600 turn solenoid with two 4mm banana plug type terminals and an Alnico magnet on a rotating platform
• Great for demonstrating how a time varying magnetic field produces an electromotive force, or how a wire's current can create a magnetic field and interact with another magnetic field
• Apparatus measures 7.75" wide, 4.75" long and 3.5" tall
• Great for physics classrooms

p>The rotating magnet provides the necessary tools to discover concepts involving Faraday's Law, magnetism, in addition to Lenz's Law. The apparatus is composed of a 600 turn solenoid with two 4mm banana plug type terminals and a bar magnet on a rotating platform. The device can either be used to show how a time varying magnetic field can produce an electromotive force, or how a current in a wire can create a magnetic field and in turn interact with another magnetic field.

Using the rotating magnet apparatus, the rotating magnet creates a time varying magnetic flux through the solenoid. The electromotive forced can be observed using a voltage meter connected to the solenoid. Alternatively, one can use the solenoid to create a magnetic field that interacts with the rotating magnet.

Apparatus is mounted to a base measuring 7.75" wide and 4.75" long. It measures 3.5" in total height. Fitted with two, 4mm banana plug type terminals.

Included:

• Rotating Magnetic Apparatus
• (1) Alnico magnet (70x18mm)
• Experiment guide

Required Materials (not included):

• Power supply (2A max capability)
• (2) 4mm banana plug leads
• Multimeter or plotting voltage probe
