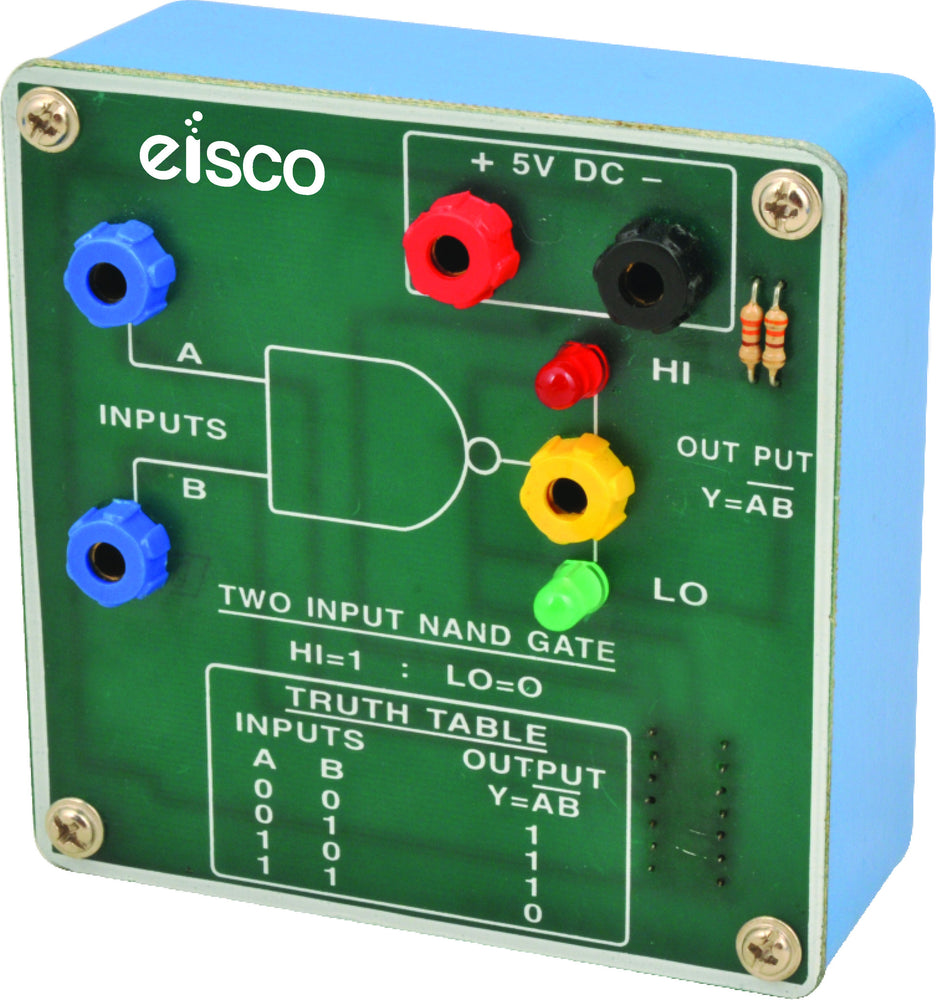

NAND Gate Two Input
SKU PH1322C
These Universal Digital Logic Gate modules are suitable to verify the digital logics andverification of the truth table. All the relevants digital logic input and output conditions are printed on the board. HI and LO output conditions are shown by Red and Green LEDs.
Suitable to verify the NAND GATE logic conditions.
Suitable to verify the NAND GATE logic conditions.
| Instructions | No instructions available online. Please contact us for further assistance. |
| High Resolution Image | Please register as a teacher or distributor to view and download high resolution images. |
